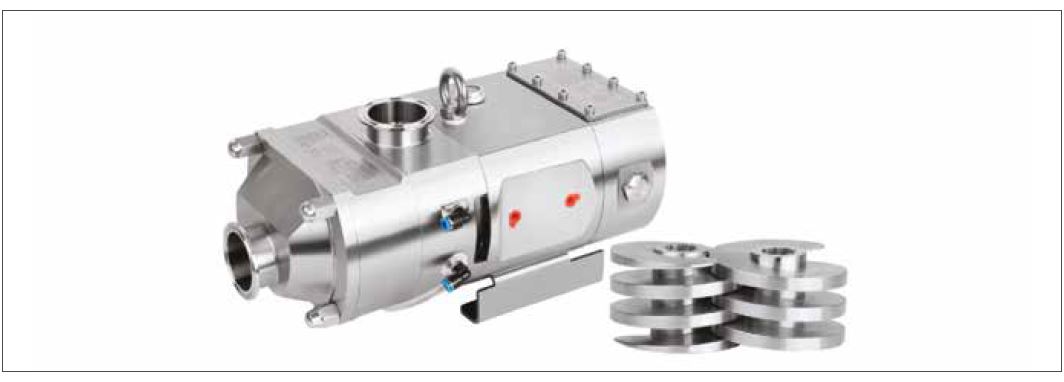

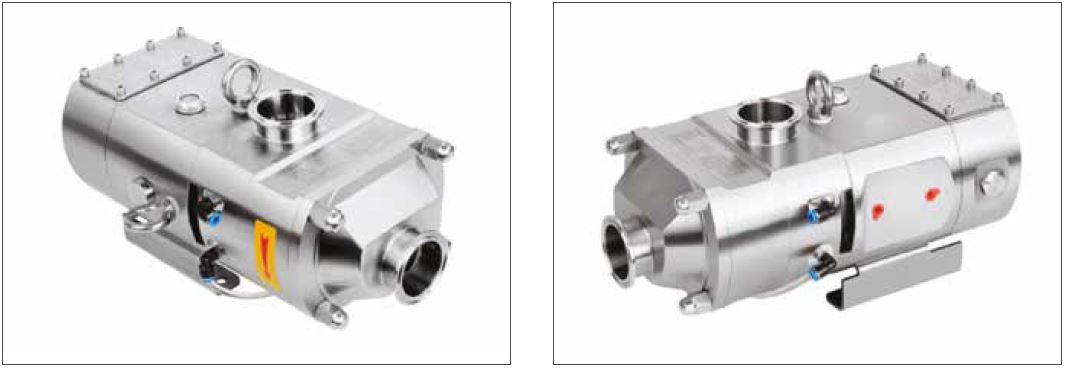

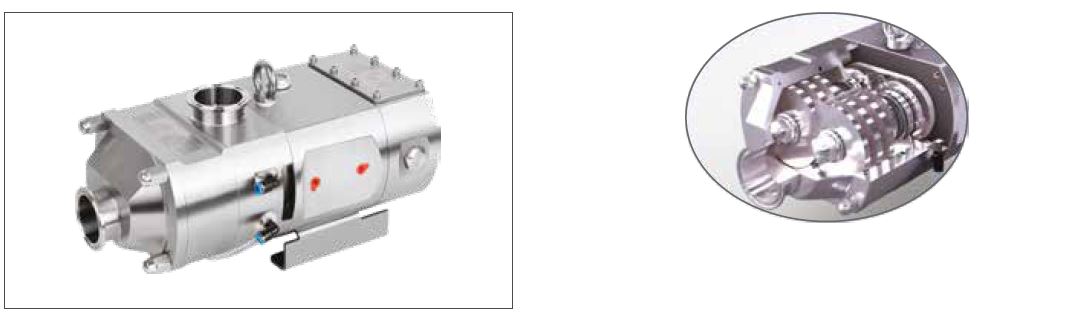

TWIN SCREW HYGIENIC PUMPS

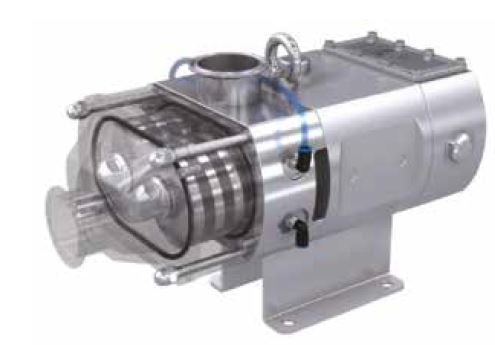

What Is Twin Screw Pump?
Flexible solution tor two-direction reversible, high pressure, high viscosity, large particle, pulse free, liquid delivery.
Twin-screw pump has strong self-priming ability, can transport solid particles. gas-liquid mixture, high viscosity. low viscosity and other materials.

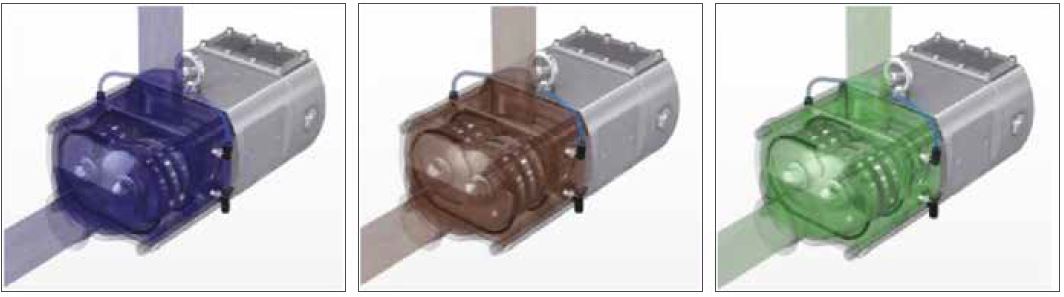

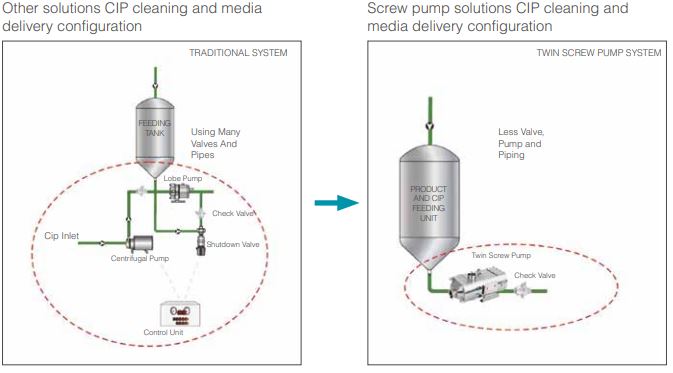

The pump not only can extract and convey materials, but also apply tor CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost. it has extra characteristics, that other volume pumps do not have. such as no pulse phenomenon, no particlo damago, high pressure, wide speed range, large flow range and so on.
After used screw pump, other auxiliary pumps and valves and controllers can be reduced as more as possible.
With its strong self-priming capacity, the TS series screw pumps have the ability to deliver high viscosity and low viscosity medium , as well as CIP liquid extraction and cleaning functions. Choosing TS series screw pump will help you to reduce using CIP dedicatcd pump and valve control system. It will save cost.

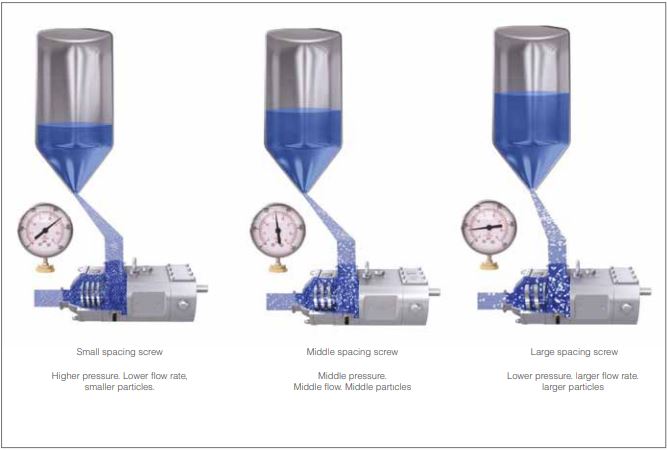

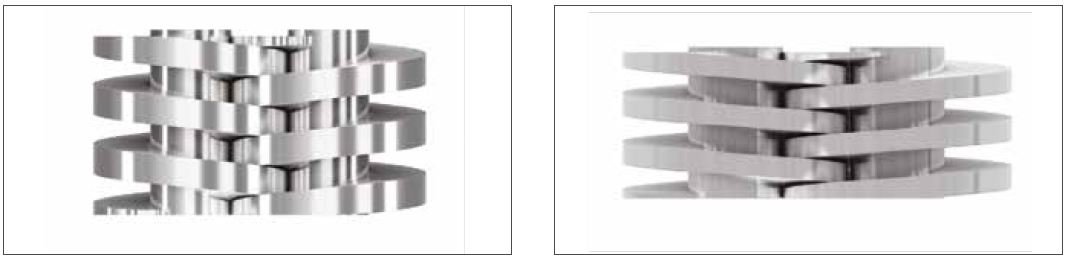

Choose the right screw spacing for your process.
Option 1: Large screw spacing, larger flow rate. Can deliver larger particles, but the pressure will be lower compared with small spacing screw
Option 2: Small screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller

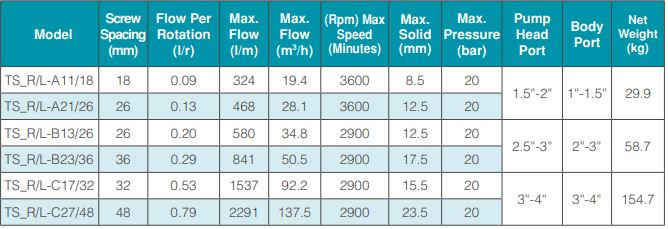

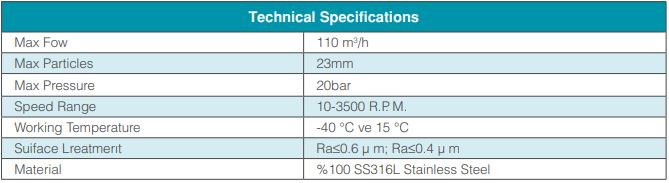

Technical characteristics selection tablet

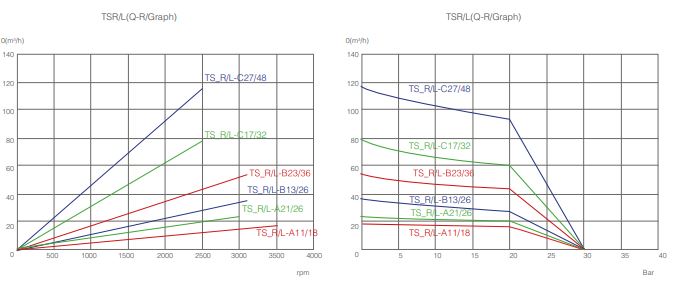

IG Screw Pump Graph
