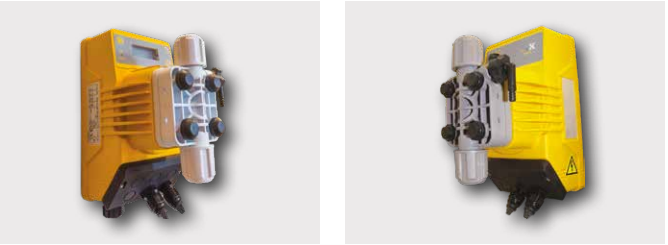

Hydra Mt Series Dosing Pumps
There are varieties with different features in the series. Analog and digital options are available. Digital options also include pH / ORP controlled options. It is suitable for flow adjustment between 0-100%. All types have PVDF dosing heads. The outer protection is made of PP material which is resistant to heat and acidic environments. IP65 protection class, PTFE (Teflon) diaphragm, Ceramic check valve. 220V AC single phase supply as standard. Suitable for wall mounting.
Hydra serisi içinde farklı özelliklere sahip çeşitleri vardır. Analog ve dijital seçenekleri mevcuttur. Dijital seçeneklerde pH/ORP kontrollü opsiyonları da vardır. %0-100 arası debi ayarı yapılmaya uygundur. Tüm çeşitlerde PVDF dozaj kafası vardır. Dış koruması ısıya ve asidik ortamlara dayanıklı PP malzemedendir. IP65 koruma sınıfında olan bu pompalar PTFE (teflon) diyaframlı ve seramik toplu çekvalflidir. Standart olarak 220V AC monofaze beslemelidir. Duvar montajına uygundur. Farklı modelleri vardır.
HYDRA SERIES MODELS
Hydra BX: Analog type. It has a standard analog dosage feature
Hydra BL: Analog type. It has the ability to make 2 different flow settings as 0-20% and 0-100%. Level sensor input (Level sensor is optional.).
Hydra BC: Analog type. It has proportional dosing with flow meter or manual dosing between 0-100%. Level sensor input. (Level sensor is optional.)
Hydra MA: Analog type. It has the ability to dosing by receiving 4-20 mA signal or manual dosing between 0-100%. Level sensor input. (Level sensor is optional.)
Hydra MT: Digital type. Anologous signal-dependent dosing (0 / 4-20mA - 20-4mA), Pulse-dependent automatic dosing 1: n, n: 1, 1: c, daily or weekly programmability, (max. 10) periodic dosing, level float input ( Level sensor is optional.), Flow sensor input, ability to display dosing data, 5 language options, password protection to prevent unauthorized use.
Hydra PR: Digital type. pH / ORP sensor with BNC input, periodic dosing feature, level float input, (Level sensor optional) PT100 temperature sensor input, (optional) with flow sensor input, remote control, (OnOff) dosing data display feature, 16-digit light LCD screen, 5 language options, password, unauthorized use has the ability to prevent.
