Athena Series Dosing Pump

There are varieties with different features in the series. Analog and digital options are available. The control sections of all models are protected by a transparent protective cover. Digital options also include pH / ORP controlled options. It is suitable for flow adjustment between 0-100%. All types have PVDF dosing heads. The outer protection is made of PP material which is resistant to heat and acidic environments. IP65 protection class, PTFE (Teflon) diaphragm, Ceramic check valve. 220 VAC single phase supply as standard. Suitable for wall mounting.

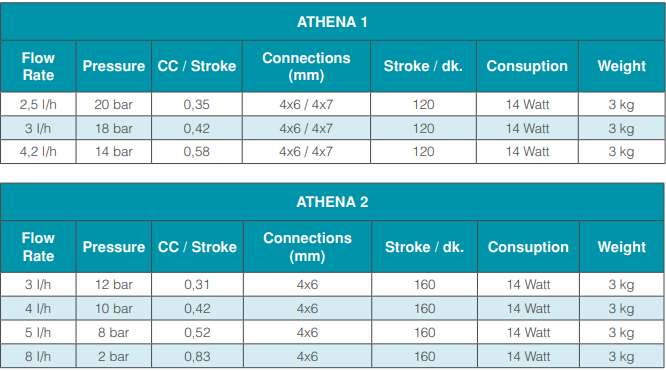

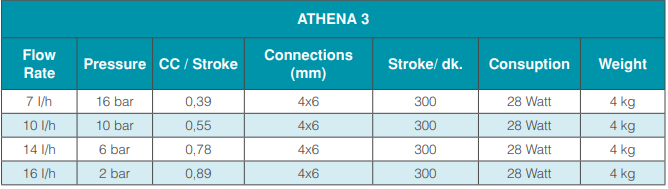

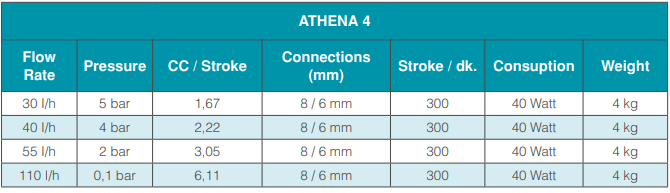

4 different sizes of pumps are available, each size has different flow rates in itself.


ATHENA SERIES MODELS

Athena BX: Analogue type. Double flow adjustment between 0-20% and 0-100% is available

Athena BL: Analogue type. It has the ability to make 2 different flow settings as 0-20% and 0-100%. Level sensor input (Level sensor is optional.).

Athena AM: Analogue type. It has the ability to dosing by receiving 4-20 mA signal or manual dosing between 0-100%. Level sensor input. (Level sensor is optional.)

Athena MT: Digital type. Anologous signal dependent dosing, (0 / 4-20mA - 20-4mA) pulse-dependent automatic dosing 1: n, n: 1, 1: c, level float input, (Level sensor optional.) Flow sensor input, ability to display dosing data It has 5 language options, features to prevent unauthorized use by password.

Athena BT: Digital type. Daily or weekly programmable (max. 10) periodic dosing.

Athena PR: Digital type. pH / ORP sensor with BNC input, periodic dosing feature, level float input, (Level sensor optional) PT100 temperature sensor input, (optional) with flow sensor input, remote control, (On-Off) dosing data display feature, 16-digit light LCD screen, 5 language options, password, unauthorized use has the ability to prevent.





Click for Dosing Pump usage areas.
