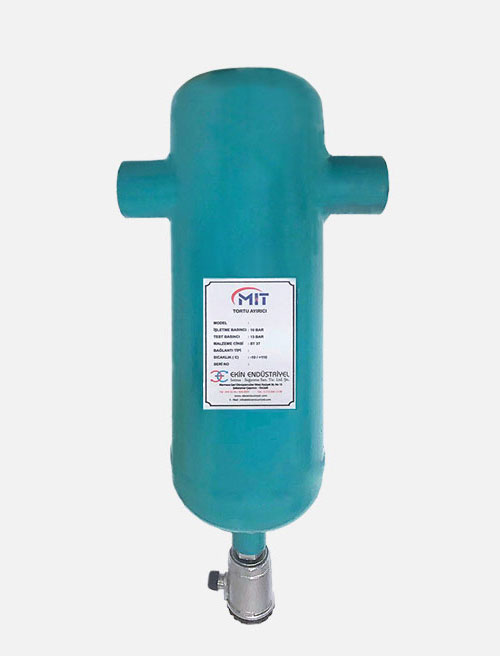

Sediment Separator

It is used to eliminate sediments and dirt in water coming from systems as well as corrosion, blockage and malfunctions.

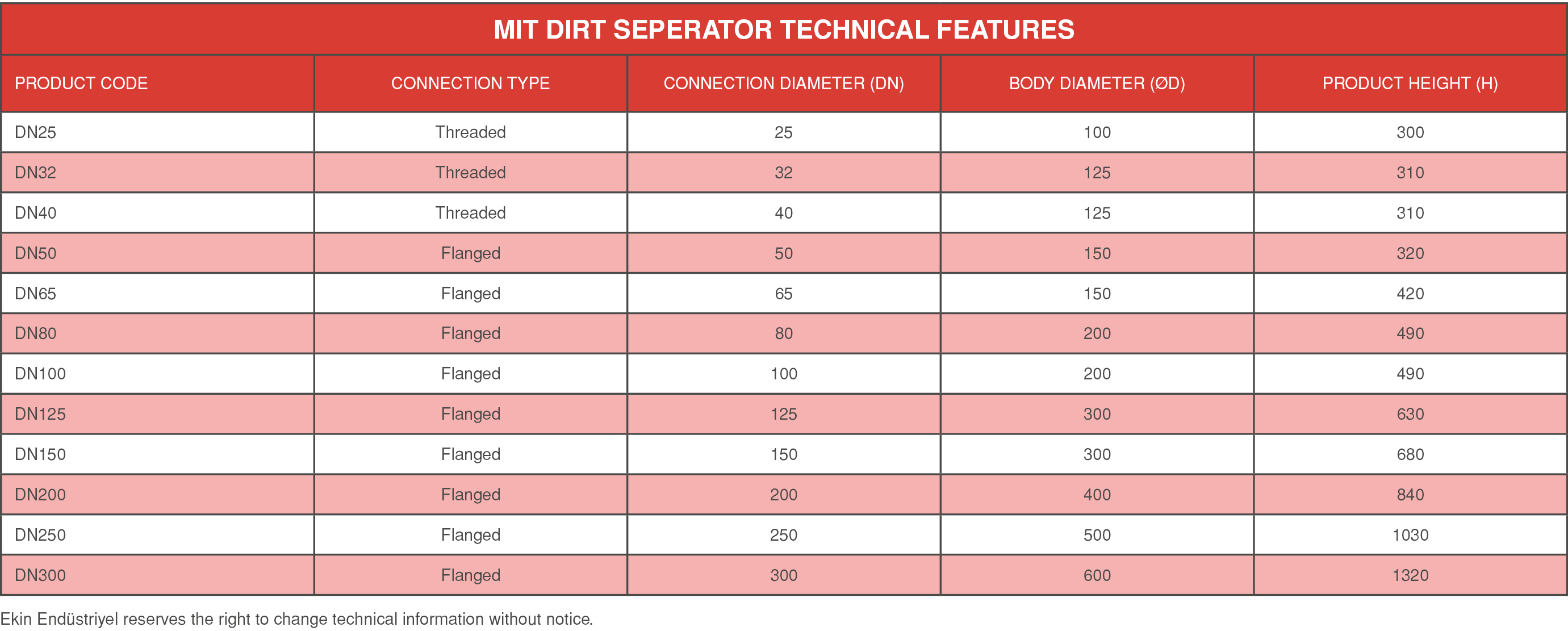

Dimensions (mm)

DN L LK H h d (KV)
50 300 270 475 330 1''
965 300 270 475 330 1''
80 400 360 600 400 1''
100 400 360 600 400 1''
125 600 520 8000 540 1''
150 600 520 800 540 1''
200 150 652 950 615 1''
250 850 750 1120 710 2''
300 950 850 1350 915 2''
350 1100 1000 1500 1050 2''
400 1200 1100 1700 1225 2''



Dimensions (mm)

d1 L H h
1/2'' 130 345 275
3/4'' 130 345 275
1'' 130 345 275
1 1/4'' 160 425 340
1 1/2'' 160 425 340
2'' 160 425 340



Spherical Dirt Discharge Valve

D 1'' 2
KV 75 mm 40 mm

Assembly Information

Maximum Pressure: 10 Bar

Maximum Temperature: 110°C
Assembly Information

In heating systems: to boiler outlet In cooling systems: to chiller inlet
Assembly Information

Maximum Pressure: 10 Bar

Maximum Temperature: 110°C
Material

Shell: St37 Steel

Separator: AISI 304
