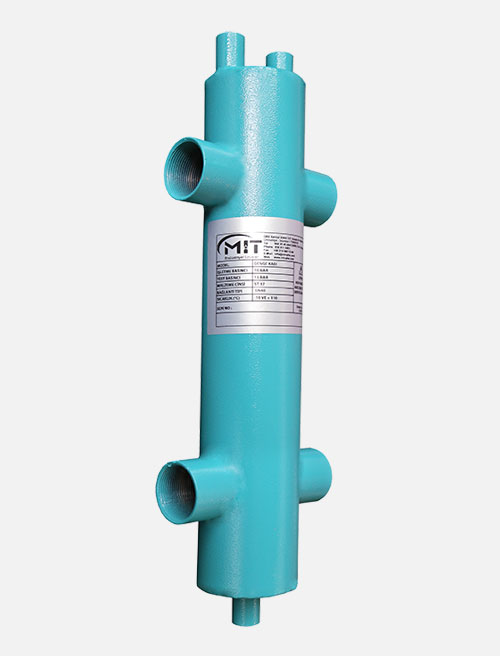

Package Balance Tank
It provides savings through thermal balance by mixing hot water coming out from the boiler and cold water coming out from the installation. It prevents thermal stress.
Dimensions (mm)
Kcal/h | KW | DN | D | m³/h | L | LK | H | h |
104,000 | 120 | 50 | 150 | 8 | 330 | 240 | 650 | 400 |
120,000 | 140 | 65 | 150 | 10 | 400 | 310 | 750 | 450 |
180,000 | 210 | 80 | 200 | 12 | 500 | 420 | 950 | 600 |
300,000 | 350 | 100 | 200 | 20 | 500 | 420 | 1100 | 700 |
340,000 | 395 | 100 | 250 | 23 | 550 | 470 | 1300 | 850 |
473,000 | 550 | 125 | 250 | 32 | 550 | 470 | 1450 | 900 |
774,000 | 900 | 150 | 300 | 52 | 600 | 520 | 1670 | 1100 |
1,118,000 | 1300 | 150 | 350 | 74 | 670 | 570 | 1950 | 1230 |
1,505,000 | 1750 | 200 | 400 | 100 | 770 | 650 | 2200 | 1400 |
2,150,000 | 2500 | 200 | 450 | 145 | 870 | 710 | 2300 | 1570 |
2,580,000 | 3000 | 250 | 450 | 172 | 890 | 750 | 2600 | 1800 |
3,010,000 | 3500 | 250 | 500 | 201 | 950 | 820 | 2800 | 1900 |
3,440,000 | 4000 | 250 | 600 | 230 | 1050 | 900 | 2800 | 2100 |
3,870,000 | 4500 | 250 | 650 | 260 | 1150 | 1000 | 2900 | 2200 |
4,300,000 | 5000 | 300 | 700 | 290 | 1400 | 1150 | 3150 | 2400 |
4,730,000 | 550 | 300 | 750 | 315 | 1400 | 1250 | 3300 | 2600 |
Air Vent
D | 1/2'' | 3/4'' | 1'' |
HA | 112 mm | 116 mm | 190 mm |
nbsp;
Spherical Dirt Discharge Valve
d | 1/2'' | 3/4'' | 1'' |
Kv | 60 mm | 70 mm | 70 mm |
Its Advantages in Heating and Cooling Systems
* Package System of 3 in Each Unit
* Achievement of Hydraulic Balance
* Air Vent
* Sediment-Dirt Separator
* Easy Assembly
* Reasonable Prices
* Two-Year Guarantee
