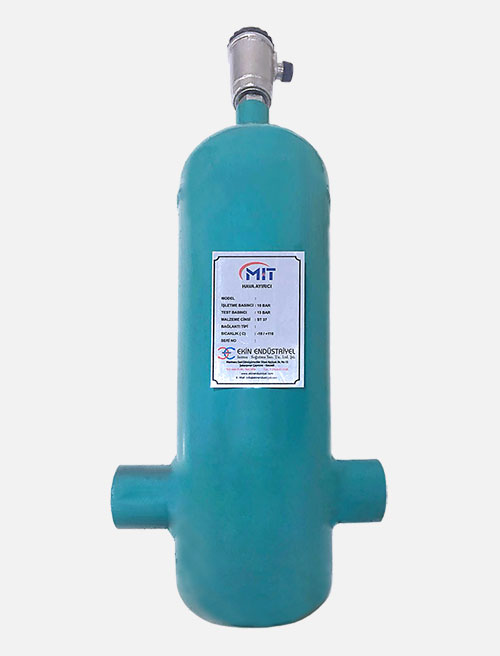

Air Separators

It is used to avoid damages that the present air in the installation could give to the system such as corrosion, cavitation and noise.

Dimensions (mm)

DN L LK H h d (HA)
50 300 270 475 330 1/2''
65 300 270 475 330 1/2''
80 400 360 600 400 1/2''
100 400 360 600 400 1/2''
125 600 520 800 540 1/2''
150 600 520 800 540 1/2''
200 750 625 950 615 3/4''
250 850 750 1120 710 3/4''
300 950 850 1350 915 1''
350 1100 1000 1500 1050 1''
400 1200 1100 1700 1225 1''



Dimensions (mm)

d1 L H h
1/2'' 63 140 29
3/4'' 69 143 33
1'' 81 146 36
1 1/4'' 93 145 41
1 1/2'' 111 156 45
2'' 135 166 51



Air Vent

DN 1/2'' 3/4'' 1''
DN 115 mm 156 mm 190 mm



Assembly Information,

Maximum Pressure: 10 Bar

Maximum Temperature: 100°C

Assembly conditions

In heating systems: to boiler outlet

In cooling systems: to chiller inlet

Material;

Shell: St37 Steel

Separator: AISI 304
