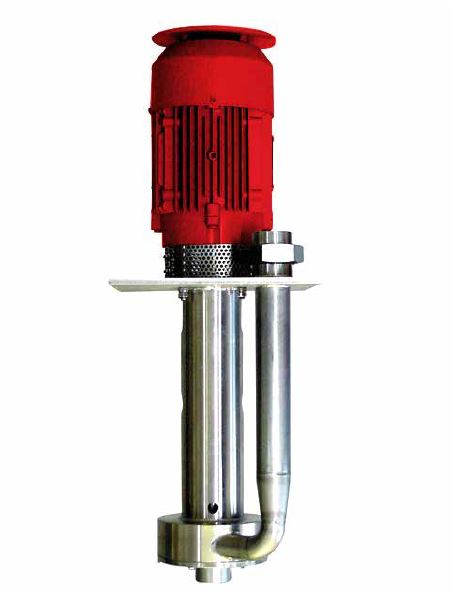

MAGNETO ACID PUMPS
VS-SS
Features
- Materials available: AISI 316 or Titanium.
- Max flow: 24 m3/h.
- Max head: 26 mlc.
- Fume labyrinth seal. A combined system of labyrinth, rings and PTFE lip seal guarantees tightness against gas and vapours.
- Impeller with low axial thrust.
- Suitable for corrosive liquids containing solids.
- Especially designed for use in the production of printed circuit boards (PCB). AISI 316 version is suitable for potassium permanganate applications at 90 °C.
- Titanium version is suitable for “Black Oxide”.
- Two different types available: VS-SS 1 for tank transfer and VS-SS 2 used as a boosting pump. VS-SS 2 model should be installed in the same tank where VS-SS 1. This provides a tight system which prevents any leaks.

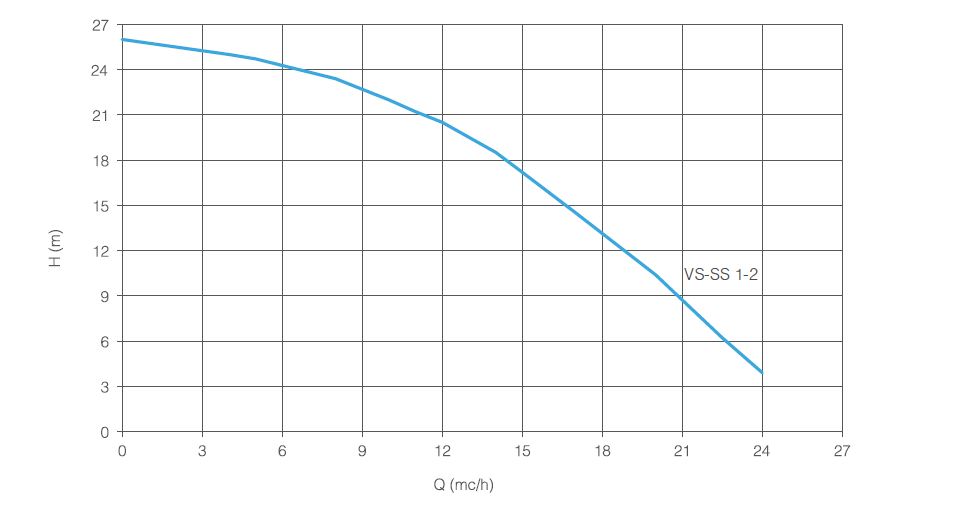

Performance Curves 50 Hz – 2900 RPM
