MAGNETO ACID PUMPS
SEAL-LESS MAG DRIVE VANE PUMPS

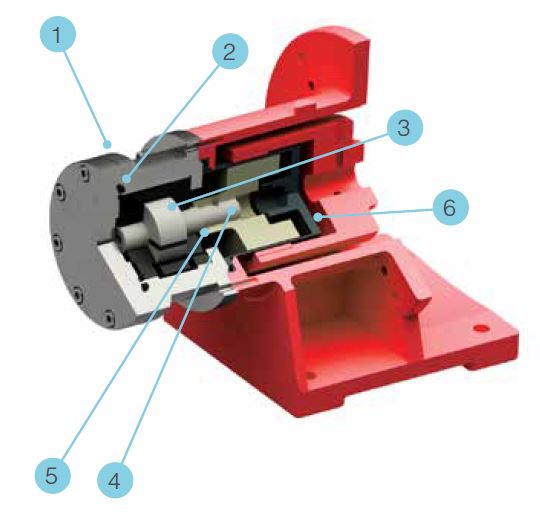

In seal-less magnetic drive vane pumps, the external magnet is directly connected to the motor shaft and it transmits the torque to the internal magnet. The magnetic field created produces a rotation without physical contact between the parts and the rotor spins. The vanes inside the rotor slide in and out of their seat and they move the fluid. The rear casing is placed between the two magnet joints and it hermetically closes the hydraulic part from the motor.
Mangeto can supply two different models of volumetric pumps:
MGP
- Thermoplastic pumps made in PP or PVDF.
- Capacity up to 1000L/h.
- Pressure up to 5 bar.
MGP-S
- Metallic pumps made in stainless steel AISI316.
- Capacity up to 2100L/h.
- Pressure up to: 13 bar.
- Dry self-priming.
