MAGNETO ACID PUMPS
SEAL-LESS MAG DRIVE CENTRIFUGAL PUMPS

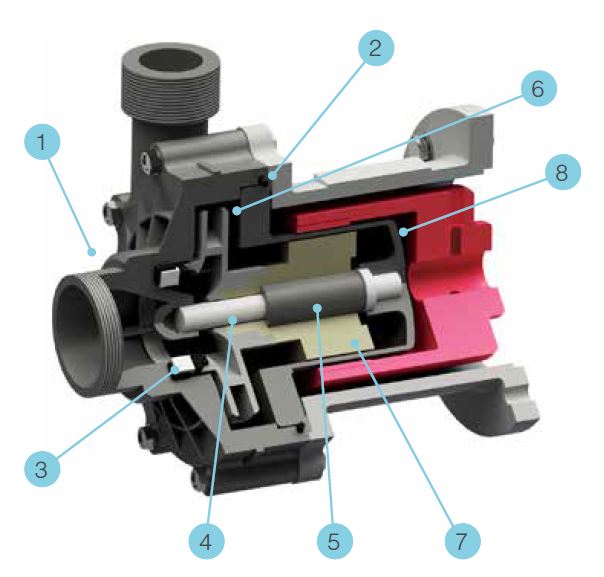

In seal-less magnetic drive centrifugal pumps, the external magnet is directly connected to the motor
shaft and it transmits the torque to the internal magnet.
The magnetic field created produces a rotation without physical contact between the parts so the
impeller spins and moves the fluid. The rear casing is placed between the two magnet joints and it
hermetically closes the hydraulic part from the motor.

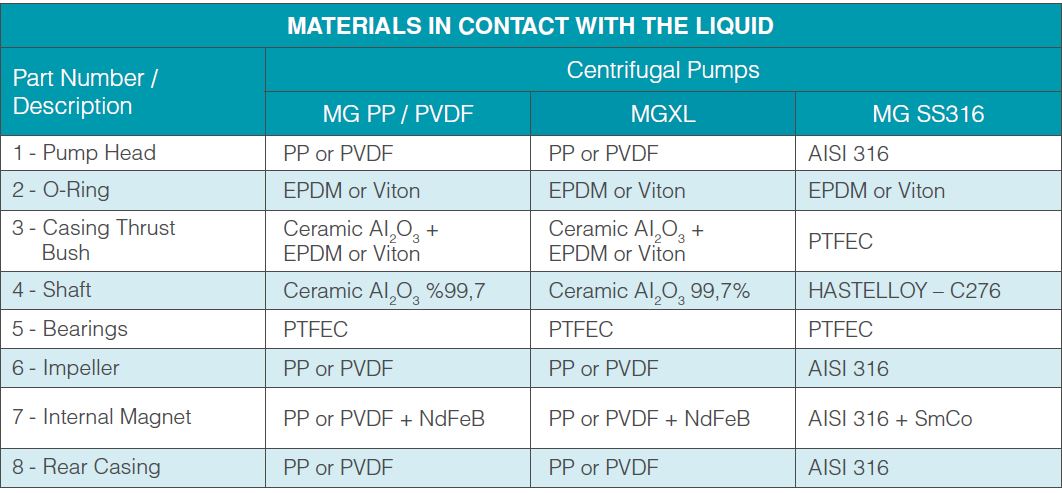

Magneto can supply three different models of mag drive centrifugal pumps:
MG PP / PVDF
- Thermoplastic pumps made in PP or PVDF.
- Capacity up to 45 m3/h.
- Head up to 33 mlc.
- Injection molded parts.
MGXL
- Thermoplastic pumps made in PP or PVDF.
- Capacity up to 130 m3/h.
- Head up to 48 mlc.
- Pump head machined from a block.
MG SS316
- Metallic pumps made in stainless steel AISI316.
- Capacity up to 32 m3/h.
- Head up to: 24 mlc.
