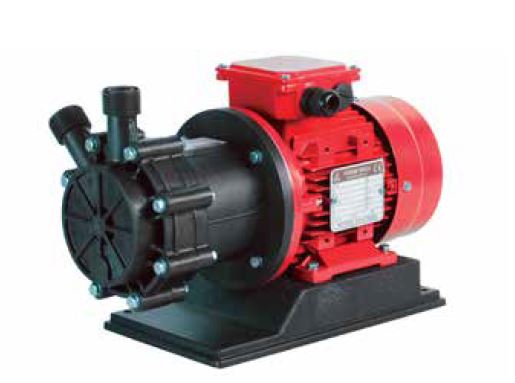

MAGNETO ACID PUMPS
MGT
Mag drive regenerative turbine pumps series MGT are made of thermoplastic materials (polypropylene-PP and PVDF) and are suitable for pumping high corrosive liquids. Thanks to the innovative mag drive system, pumps model MGT reduce risks of leakage and emissions and the maintenance costs. The transmission of the motion occurs through magnetic joints without any mechanical seal. This sealless design guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.
Main Features
- Materials available: PP / PVDF.
- Plastic injection moulded.
-
• Materials in contact with the liquid:
Casing and rear casing: PP/PVDF; Impeller:
PVDF;
O-ring: EPDM (standard for PP pumps);
Viton (standard for PVDF pumps);
Shaft: Al2O3 99,7%;
Bearing: PTFEC.
- Max flow: 9 m3/h; Max head 50 mlc.
- Temperature: PP: max 70° C - PVDF: max 90 °C.
- Max viscosity: 40 cPs.
- Pressure rating: NP 6.
- It handles up to 20% entrained gas.
- MGT pump resists cavitation.
Standard:
- Gas threaded In and Out connections.
- Static shaft in high purity ceramic.
- Chemical resistant PTFE/carbon sleeve bearings.
- High torque magnetic coupling.
- Direct starting motor.
Optional:
- DIN or ANSI 150 flanges available.
- Baseplate.
- Dry-running protection.

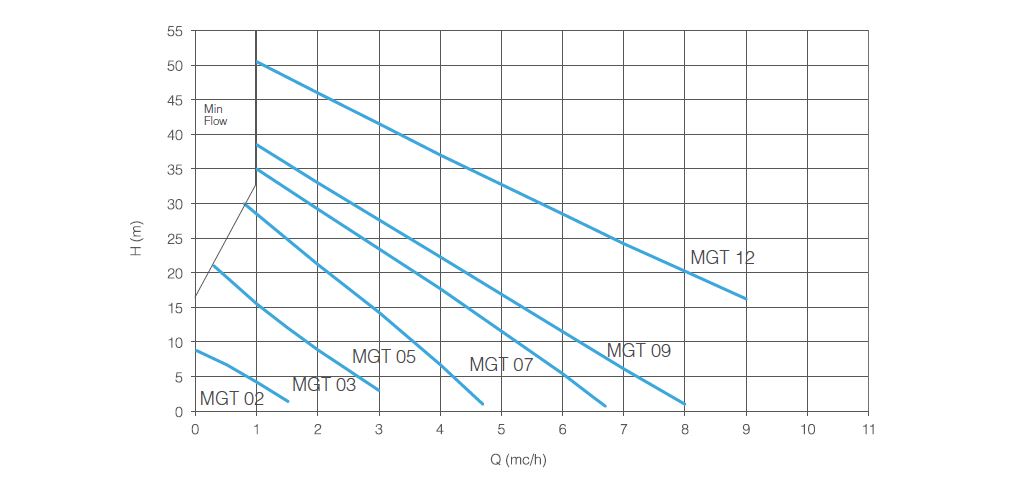

Performance Curves 50 Hz – 2900 RPM
