MAGNETO ACID PUMPS
MGP

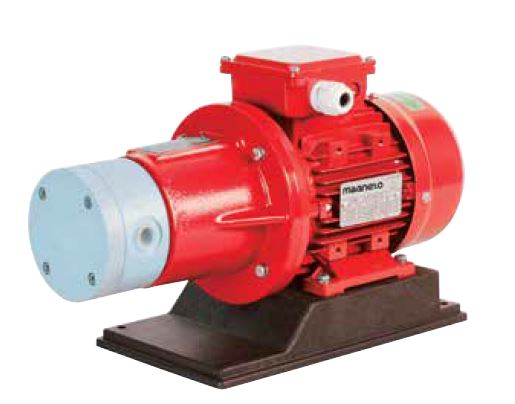

Mag drive rotary vane pumps series HPP-HPF are made of thermoplastic materials (PP/PVDF) and are suitable for corrosive liquids, alkalis, toxic, noxious and carcinogenic fluids. Thanks to the innovative mag drive system, pumps model HPP-HPF reduce the risks of leakage and the maintenance costs. HPP-HPF pumps are useful for low flow and high head applications such as Pilot Plants and Sampling.
Main Features
- PP, PVDF.
-
Materials in contact with the liquid:
Casing, end cover, internal magnet and rear
casing: PP/PVDF;
O-ring: EPDM (standard for PP pumps);
VITON (standard for PVDF pumps).
- Graphite Stator.
- Rotor shaft: PVDF.
- Max flow: 1000L/h.
- Max pressure: 5 bar.
- Temperature: PP: max 70 °C - PVDF: max 90 °C.
System Pressure:
- 8 bar.
Standard:
- High torque magnetic coupling.
- Direct starting motor.
Optional:
- Flanges available.
- Dry-running protection.
- Baseplate.

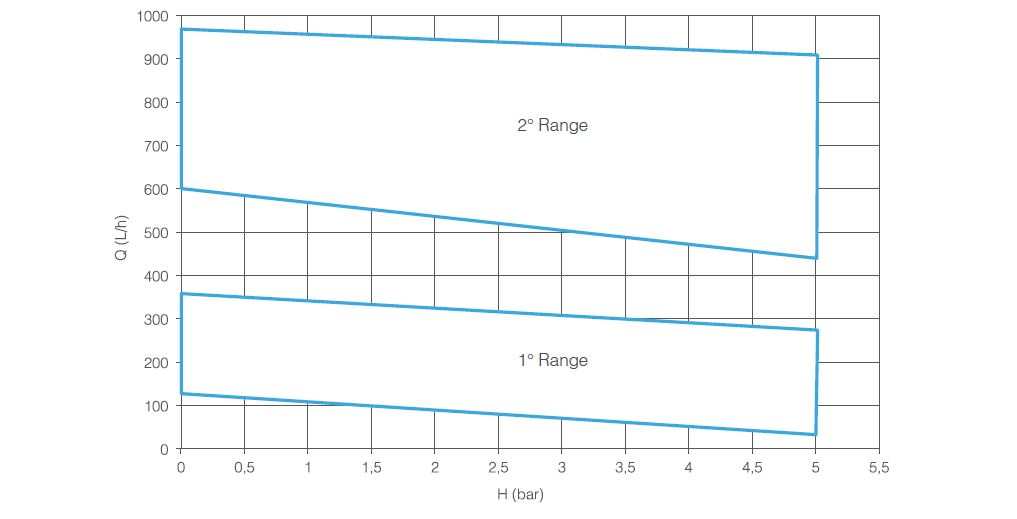

Performance Curves 50 Hz – 1450 RPM
