MAGNETO ACID PUMPS

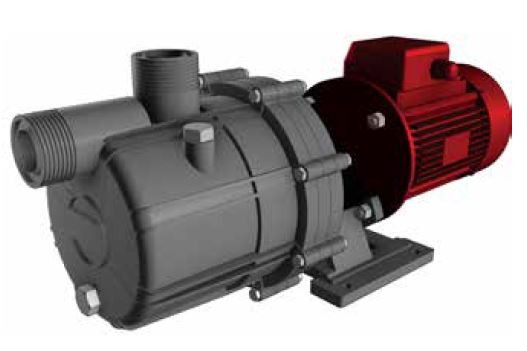

MG-SP
MG-SP pumps combine the typical features of ours mag drive centrifugal pumps with the selfpriming capability. At sea level, these pumps can prime up to 6 meters in a very short time. MGSP pumps can be made of Polypropylene (PP) or PVDF and assure high resistance and chemical compatibility with a large range of corrosive and dangerous fluids. Thanks to the innovative sealless magnetic drive system, pumps model MGSP guarantee the maximum safety and efficiently reducing risks of leakage and emissions in the environment and the maintenance costs. The pumped liquid has to be clean, without solids in suspension.
Main Features
- Materials available: PP or PVDF;
-
Materials in contact with the liquid:
Casing and Impeller: PP/PVDF;
O-Ring: EPDM (standard for PP pumps) /
VITON (standard for PVDF pumps);
Static Shaft: Al2O3 99.7%;
Bearing: PTFEC.
- Capacity up to 26 m3/h.
- Head up to 21 m.
- Max temperature: PP: 70 °C - PVDF: 90 °C.
- Max viscosity: 200 cSt.
- Pressure rating: PN6 at 20 °C.
- Self-priming up to 6m at sea level.
Standard:
- Gas threaded in and out connections.
Optional:
- Flanges connection.
Performance Curves 50 Hz – 2900 RPM
