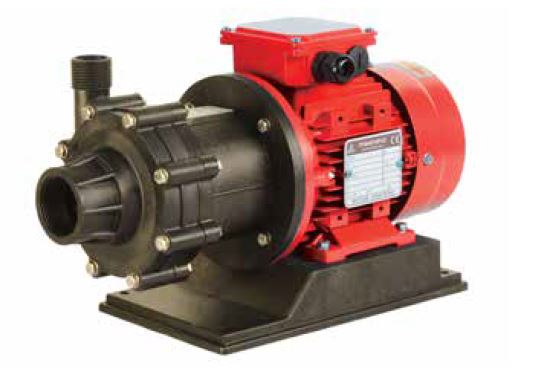

MAGNETO ACID PUMPS
MG PP / PVDF
Mag drive centrifugal pumps series MG PP/ PVDF are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, pumps model MG PP/PVDF reduce the risks of leakage and emissions and the maintenance costs. The transmission of the motion occurs through magnetic joints without any mechanical seal and this design guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension. High torque magnetic coupling NdFeB standard. Suitable for high corrosive liquids.
Technical Features
- Materials available: PP / PVDF
-
Casing and impeller: PP/PVDF;
- O-ring: EPDM (Standard for PP pumps);
- Viton (Standard for PVDF pumps);
- Static Shaft: Al2O3 99,7 %; Bushing PTFEC.
- Max flow: 45 m3/h; Max head 33 mlc.
- Temperature: PP: max 70°C – PVDF: max 90 °C.
- Max viscosity: 200 cSt.
- Engine Power: It changes between 0.12 kW and 7.5 kW, depending on the model.
- Connection Diameter: It changes between 1 “and 3” depending on the model.
- Pressure rating: NP 6 at 20 °C.

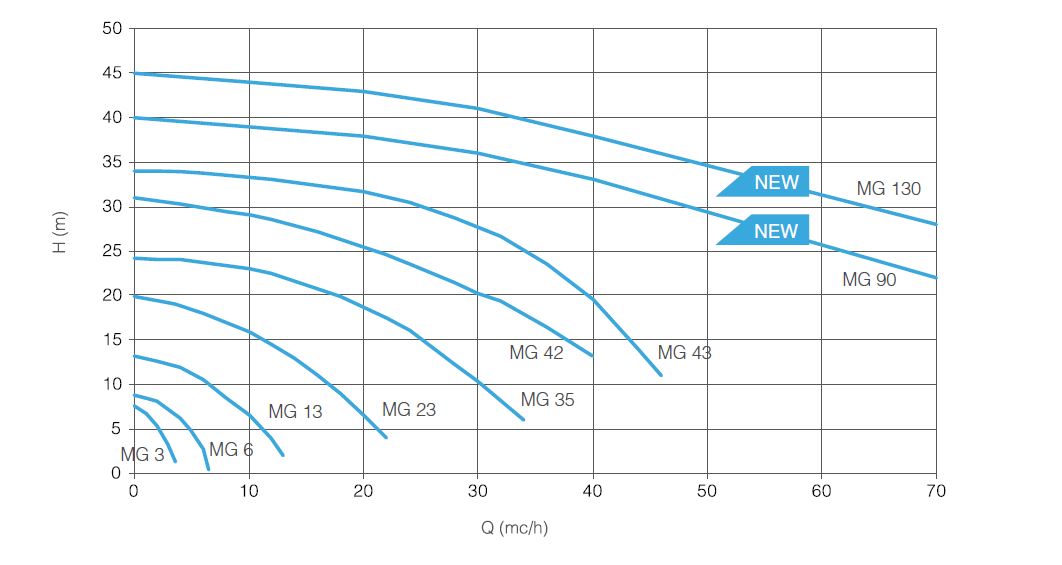

Performance Curves 50 Hz – 2900 RPM
