HYDRAULİC OİL COOLER

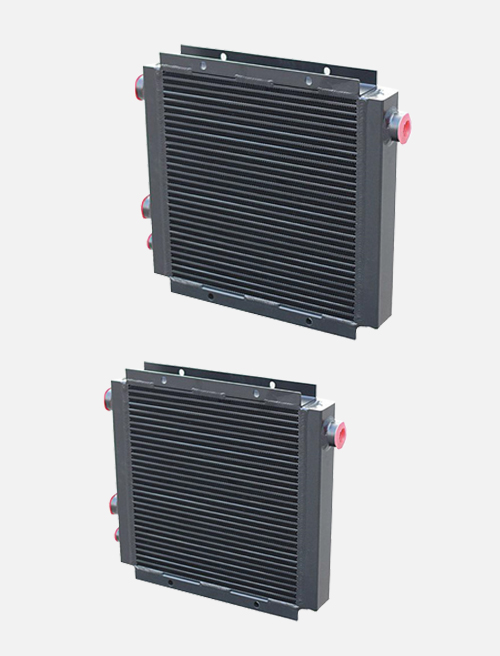

YS5 Series Hydraulic Oil Coolers With DC Motor
Ys-5 series oil coolers are machines that are resistant to 21 bar working pressure, 14 bar dynamic working pressure and 120 oC working temperature and has a cooling capacity of 30 kW. YS-5 series oil coolers, which can be custom designed, are used in many fields such as engine oil, hydraulic oil, transmission oil applications.
The YS-5 series offer trouble-free performance thanks to its compact and powerful design, proven by field tests. Thanks to the air-fin design that minimizes the pollution coefficient, cooling efficiency is long-lasting. Its aluminum heatsinks and connections make these devices both durable and able to provide rapid heat transfer. It can be designed for both engine and industrial applications, according to customer requirements. The inlet and outlet connections of the oil are reversible and support both 12- and 24-volt DC fans.
Industrial Applications
Oil coolers are used on a wide variety of mobile machines worldwide:
- Hydraulic oil applications
- Engine oil applications
- Transmission oil applications
- Greasing oil applications
Technical Information
Maximum Working Pressure: 20 psi
Maximum Operating Temperature: : 35 °C
Hydraulic Oil Maximum Inlet Temperature: 70 °C
Maximum Cooling Capacity: 30 kW (OEC05)
Materials in its structure
Core:Soldered Aluminum bar and plate
Tanks:5052 Aluminum
Feeder Bar & Small Bar:3003 Aluminum
Air Fin, Tabulator & End Plate:Aluminum
Connections:Aluminum
DC Motor Hydraulic Oil Coolers
- Bar & plate welded aluminum core
- Compact and powerful design, proven by field tests
- High heat transfer suitable for the model
- Air-fin design that minimizes the pollution coefficient
- Welded aluminum connection port / connection equipment
- Standard NPT Mouth, SAE BSPP is available.
- 12- or 24-Volt DC Fans
- Custom design
