HYDRAULİC OİL COOLER

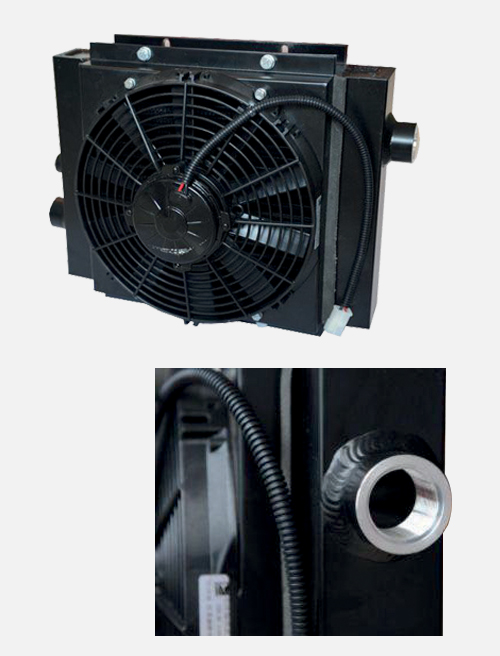

YS1 Series Hydraulic Oil Coolers With DC Motor
Ys 1 Series oil coolers with fans are machines resistant to 250 psi working pressure and 2500 oF working temperature. These oil coolers are ideal for mobile applications and frequently used in many vehicles such as agricultural machines, street cleaning vehicles, and construction machines.
The YS-1 series offer trouble-free performance thanks to its compact and powerful design, proven by field tests. Thanks to the air-fin design that minimizes the pollution coefficient, cooling efficiency is long-lasting. Its aluminum heatsinks and connections make these devices both durable and able to provide rapid heat transfer. The inlet and outlet connections of the oil are reversible and support both 12- and 24-volt DC fans.
Industrial Applications
Oil coolers are used on a wide variety of mobile machines worldwide:
- Agricultural machinery
- Street cleaning machines
- Hydraulic drives
- Compressors
- Construction machines
- Engine oil cooling
Technical Information
Maximum Working Pressure: 250 psi
Maximum Operating Temperature: 250°F
Materials in its structure
Cooler:Aluminum
Fan Housing:Plastic
Wing Tip: Powder coated iron
Fan Blades:Plastic
DC Motor Hydraulic Oil Coolers
- Bar & plate welded aluminum core
- Compact and powerful design, proven by field tests
- High heat transfer suitable for the model
- Air-fin design that minimizes the pollution coefficient
- Welded aluminum connection port / connection equipment
- Standard NPT Mouth, SAE BSPP is available.
- 12- or 24-Volt DC Fans
