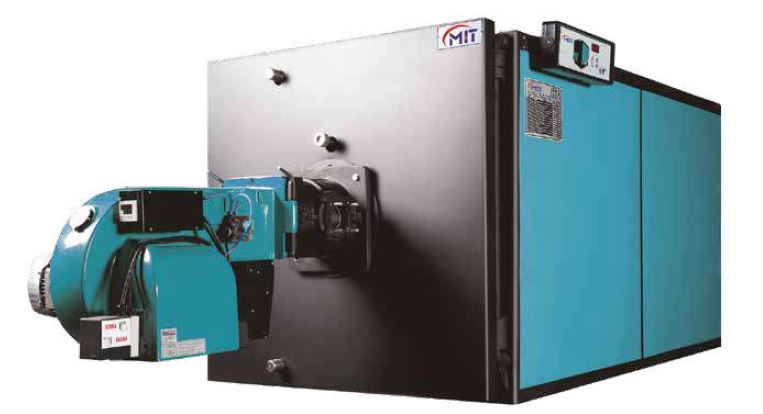

Gas Fired Two-Pass (Counter Pressure) Hot Water Boiler

TWG Series (counter pressure) gas fueled steel hot water boilers are specially designed for central heating systems with high combustion efficiency, low chimney gas emission values, small sizes and long usage life.

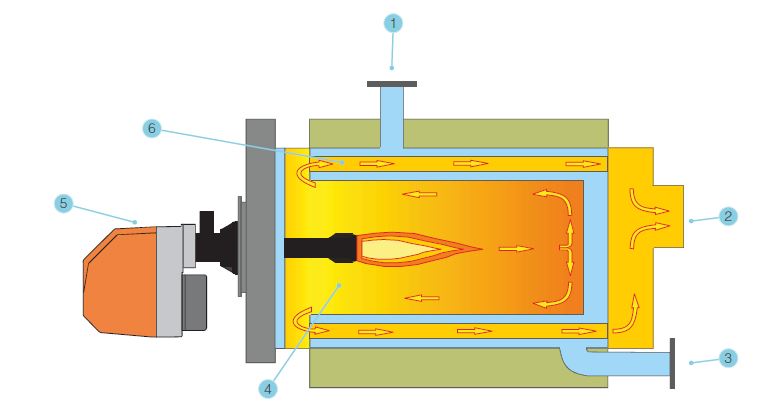

In TWG model which has two-pass design, flame coming out of burner barrel move within furnace (combustion chamber) and hit the opposite mirror (floor). Gases in the flame returning to its source direction as a result of this impact are again met with burner flame within the same cell. With this encounter, unburnt or semi-burnt gas particles are burned again and leave their energy and transformed into heat. Gases burning with burner high pressure within furnace (combustion chamber) hit the front cover and are carried to back smoke box via smoke pipes and then to chimney from here.




Features

  • High combustion efficiency up to 95%.
  • Window type flame crushers in smoke pipes (turbulators).
  • Suitable for long barrel burner use.
  • Microprocessor control panel that acceptable control burner and pump system.
  • Siemens Albatros series model control panels offering comfort and economy together. (Optional)
  • Water cooled cover system.
  • Standard operating pressure of 4 bars.
  • Full cylindrical boiler body.
  • Body shell coated with electrostatic power paint on deposit sheet.
  • Minimum wait losses with 80 mm thick mineral-based insulation on body and front cover.
  • Production opportunity up to 8 bar on request.
  • On-site manufacturing facilities.
  • 3.1 certificated boiler tube compatible with 10217-2 norm.
  • Compliance with national and international norms.

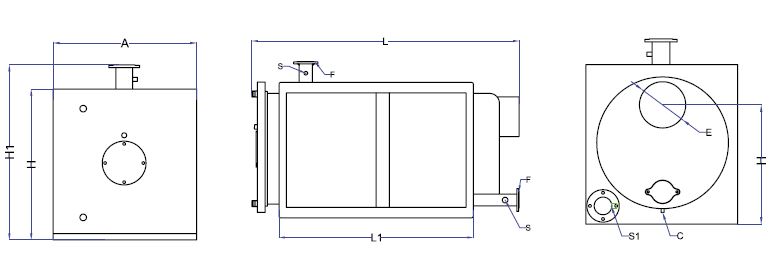

twg-serisi-teknik-cizim

twg-serisi-sema

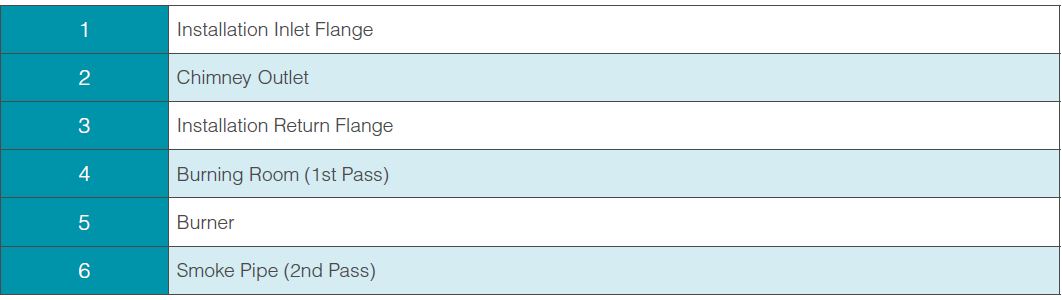

twg-serisi-sema-aciklama-tablo

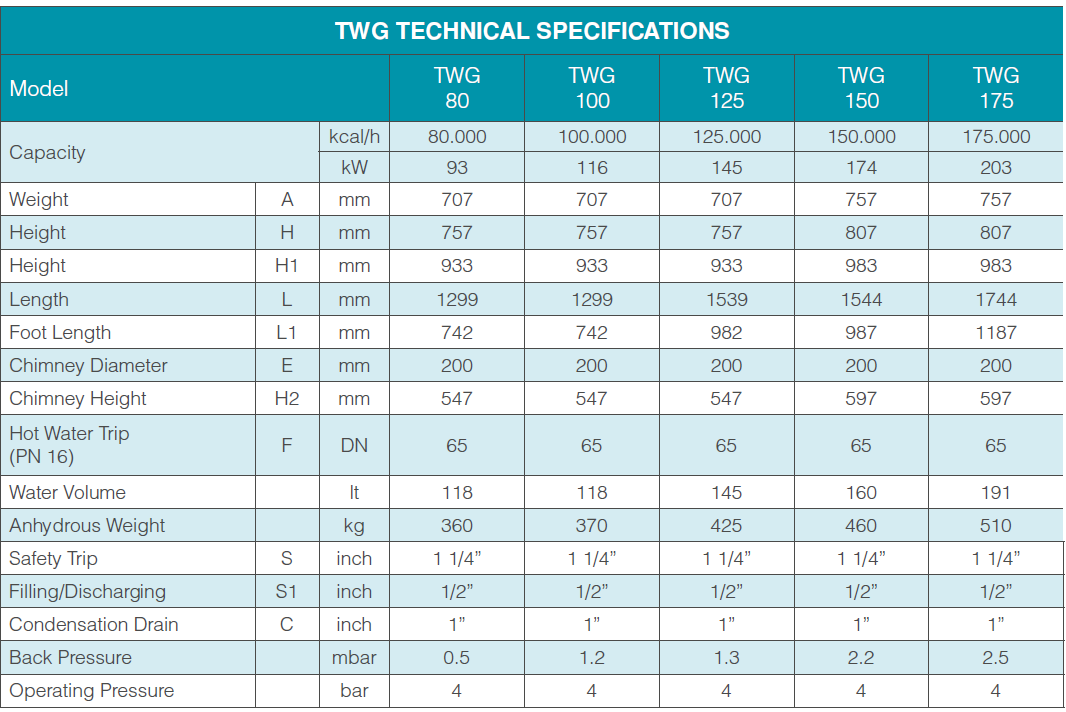

twg-teknik-ozellikler-tablo-1

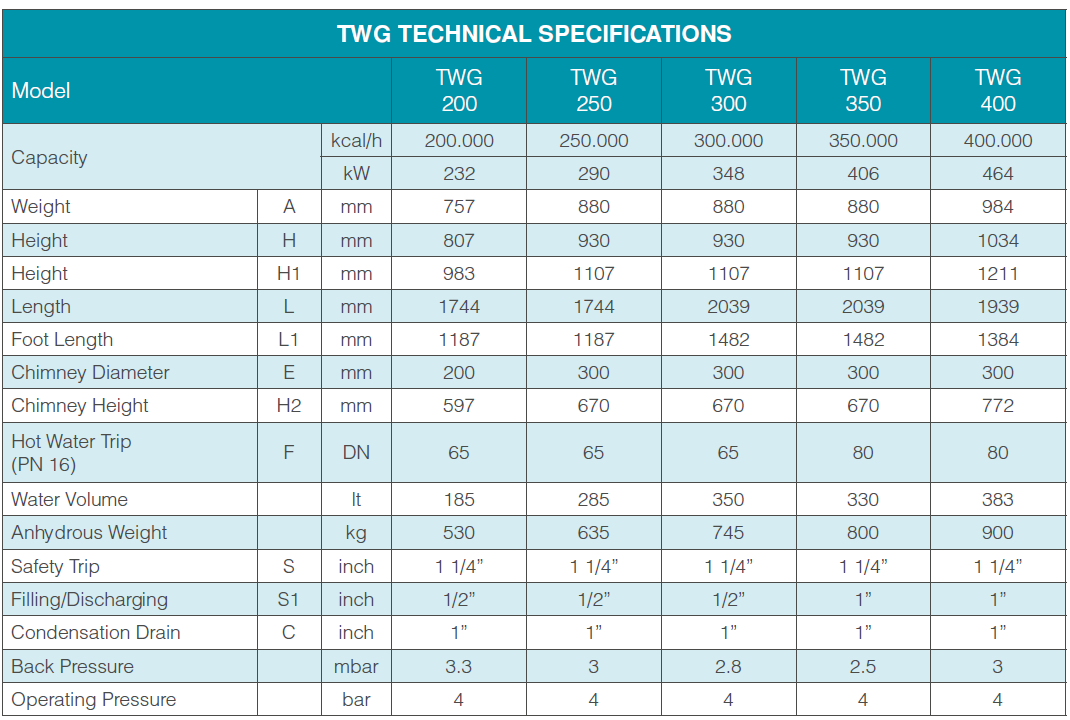

twg-teknik-ozellikler-tablo-1

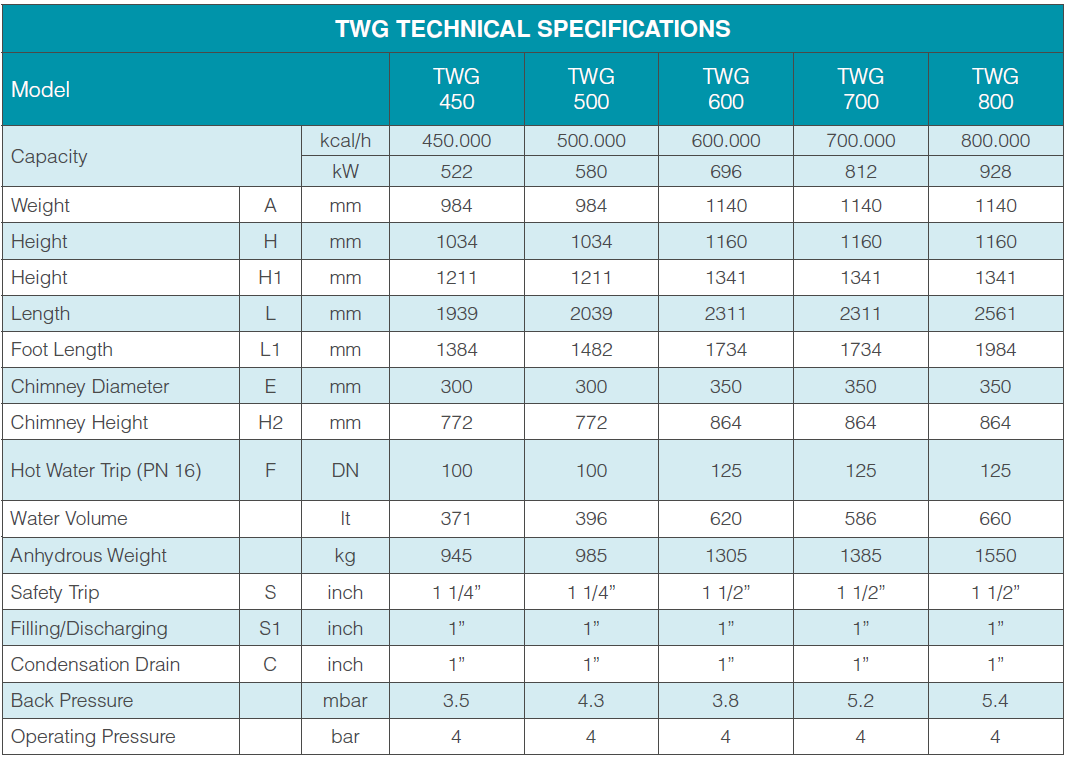

twg-teknik-ozellikler-tablo-1
