BOILER SYSTEMS

Kazan Sistemleri - TLG Serisi

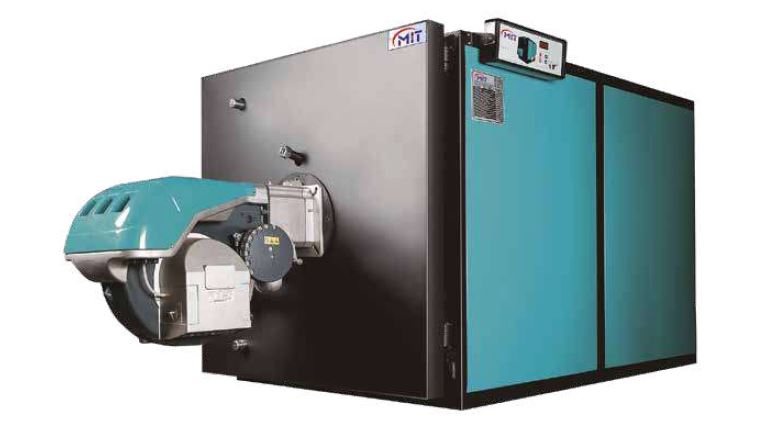

Liquid Gas Fueled Three-Pass Hot Water Boiler

TLG Series; Three-pass liquid and gas-fired hot water boilers are specially designed for central heating systems with their high combustion efficiency, optimal flue gas emissions, quiet operation and long operating life.




Features

  • High combustion efficiency up to 95%.
  • Window type flame crushers in secondary pass pipes (turbulators).
  • Suitable for standard barrel burner use.
  • Microprocessor control panel that can control burner and pump system.
  • Siemens Albatros Series RVS Model Control Panels offering comfort and economy together. (Optional)
  • Water cooled cover system.
  • Standard operating pressure 4 bars.
  • Full cylindrical boiler body.
  • Body shell coated with electrostatic power paint on deposit sheet.
  • 80 mm thick mineral-based insulation on body and front cover.
  • Production opportunity up to 8 bar on request.
  • On-site manufacturing facilities.
  • Pipe bundle between passes excluding three pass burning room.
  • Compatibility with integrated and external stainless economizer applications.
  • 3.1 certificated boiler tube compatible abidance 10217-2 norm.
  • Compliance with national and International norms.

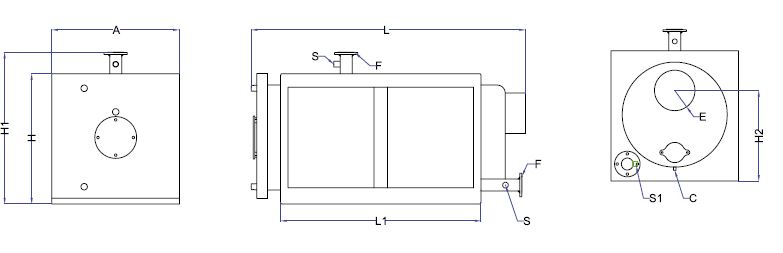

tlg-serisi-teknik-cizim

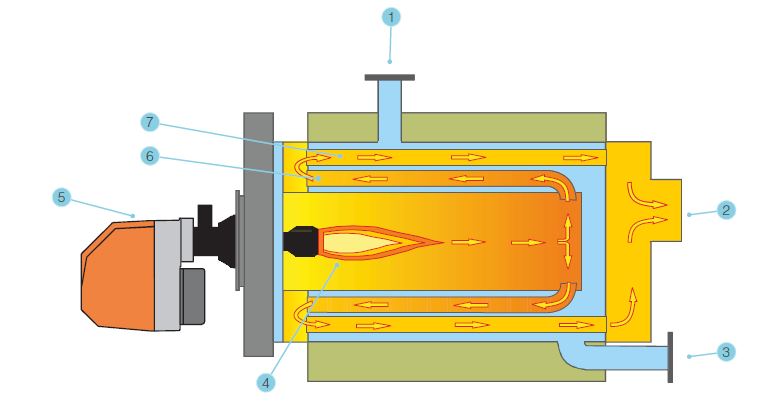

tlg-serisi-sema

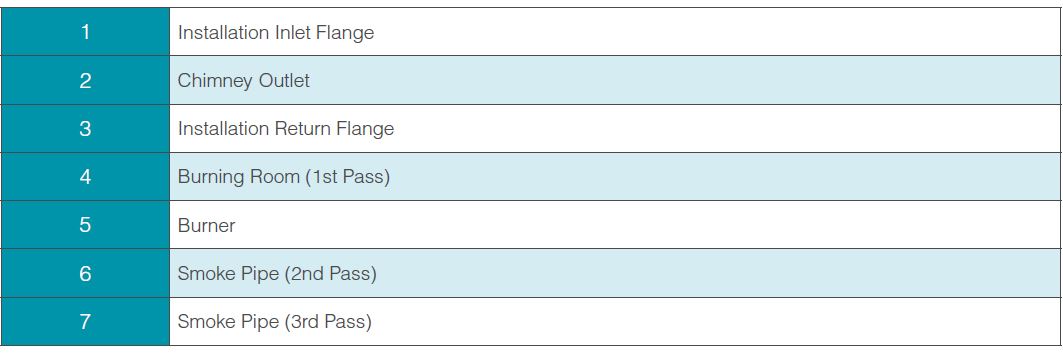

tlg-serisi-sema-aciklama-tablo

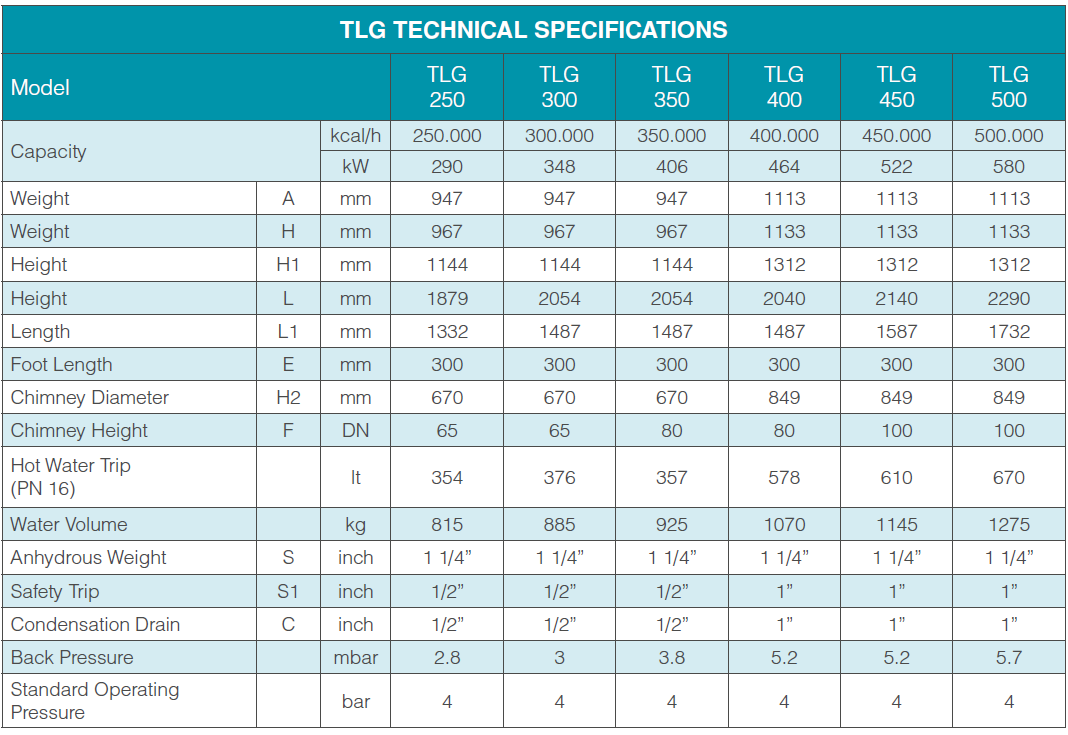

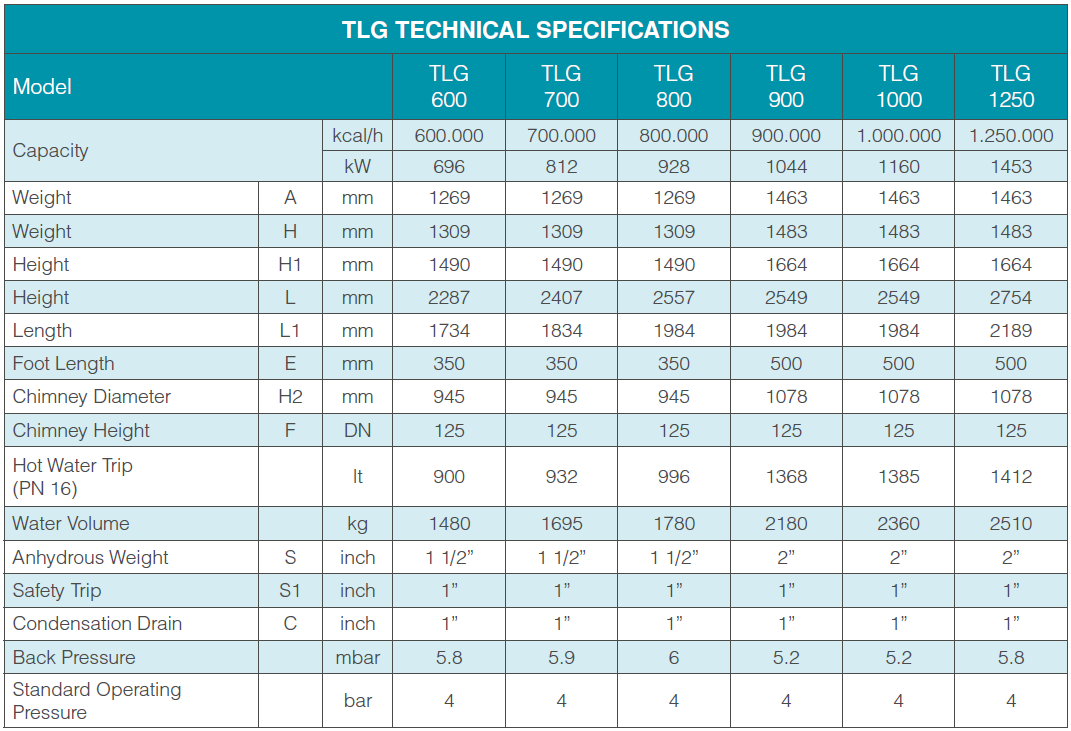

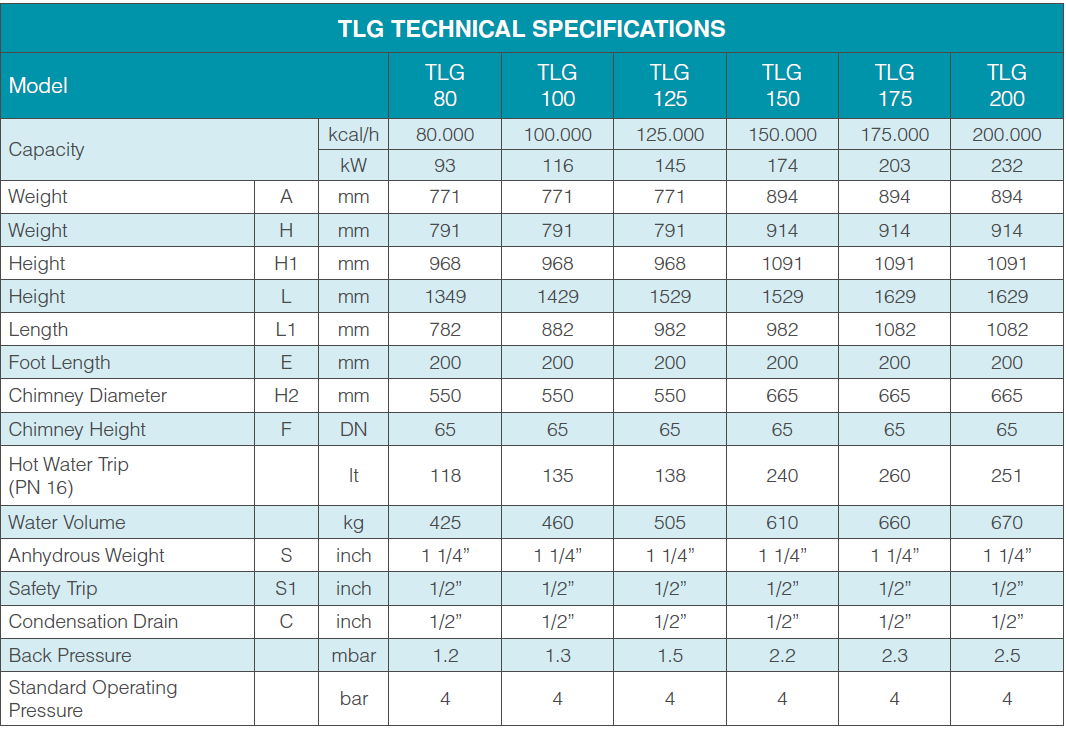

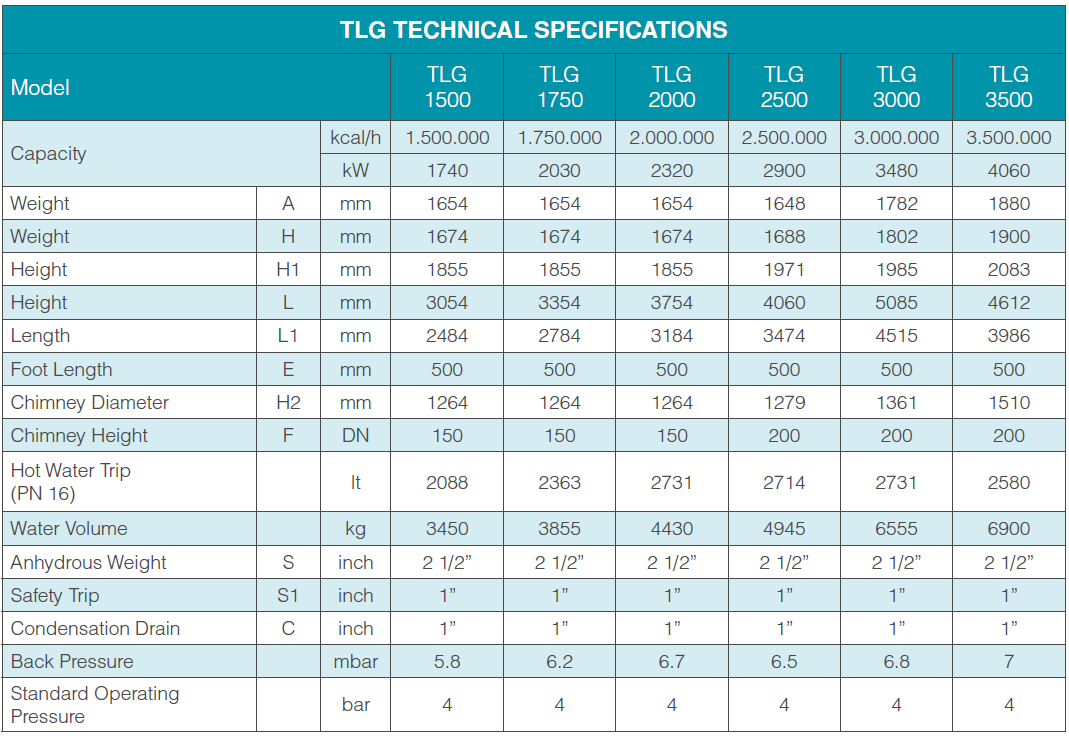

tlg-teknik-ozellikler-tablo-1


tlg-teknik-ozellikler-tablo-1


tlg-teknik-ozellikler-tablo-1


tlg-teknik-ozellikler-tablo-1
