BOILER SYSTEMS

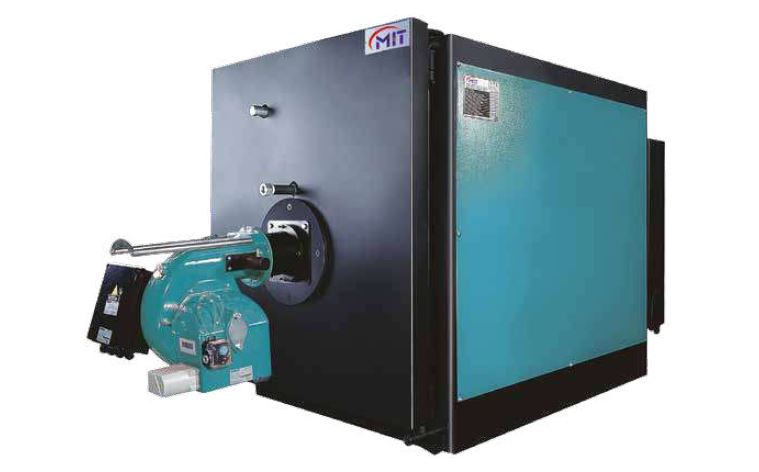

Gas Fired Floor Type Self Condensing Boiler

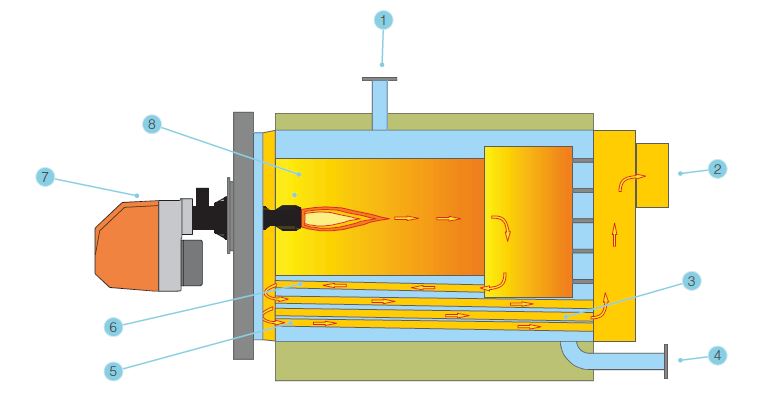

TGY Series; Gas-fired floor type self-condensing steel body boilers are designed specifically for central heating systems having primary concern of business economy thanks to their high combustion efficiency and long service life. The highest operation temperatures at which TGY boilers reach the highest efficiency are the range of 50/30 ˚C. Condensation energy emerging in boiler third pass pipes are transfered to the system via titanium alloyed stainless steels pipes.
Features
- High combustion efficiency up to 105% (50/30 ˚C).
- All surfaces where condensation occurs contain 316 titanium alloyed stainless steel material.
- Special body design for discharging condensation water.
- Suitable for standard barrel burner use.
- Microprocessor control panel that acceptable control burner and pump system.
- Siemens Albatros series model control panels offering comfort and economy together. (Optional)
- Water cooled cover system.
- Standard operating pressure of 4 bars.
- Full cylindrical boiler body.
- Body shell coated with electrostatic power paint on deposit sheet.
- Minimum wait losses with 80 mm thick mineral-based insulation on body and front cover.
- Production opportunity up to 8 bar on request.
- On-site manufacturing facilities.
- 3.1 certificated boiler tube compatible with 10217-2 norm.
- Compliance with national and international norms.
