BOILER SYSTEMS

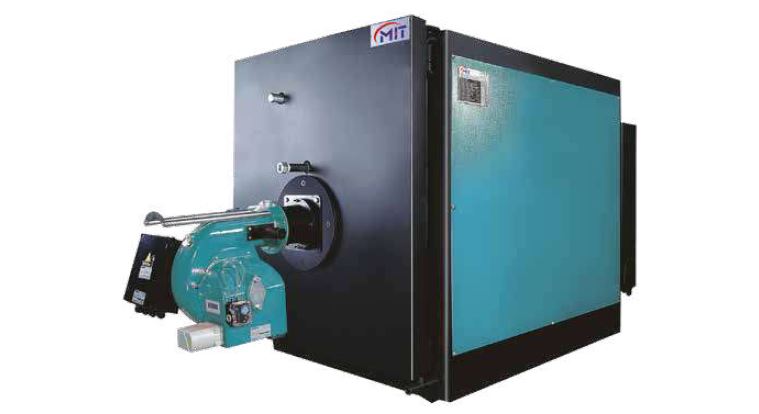

Gas Fired Floor Type Full Condensing Boiler
TGTY Series; Gas-fired floor type fully condensing steel body boilers are designed specifically for central heating systems having primary concern of business economy thanks to their high combustion efficiency and long service life.
The highest operation temperatures at which TGTY boilers reach the highest efficiency are the range of 50/30 ˚C. The highest operation temperatures at which TGTY boilers reach the highest efficiency are the range of 50/30 ˚C.
Features
- High combustion efficiency up to 108% (50/30 ˚C).
- All surfaces where condensation occurs contain 316 titanium alloyed stainless steel material.
- Suitable for standard barrel burner use.
- Microprocessor control panel that acceptable control burner and pump system.
- Siemens Albatros series model control panels offering comfort and economy together. (Optional)
- Water cooled cover system.
- Standard operating pressure 4 bars.
- Full cylindrical boiler body.
- Body shell coated with electrostatic power paint on deposit sheet.
- 80 mm thick mineral-based insulation on body and front cover.
- On-site manufacturing facilities.
- Environmentalist design with low chimney gas emissions.
- Compliance with national and international norms.
