BOILER SYSTEMS

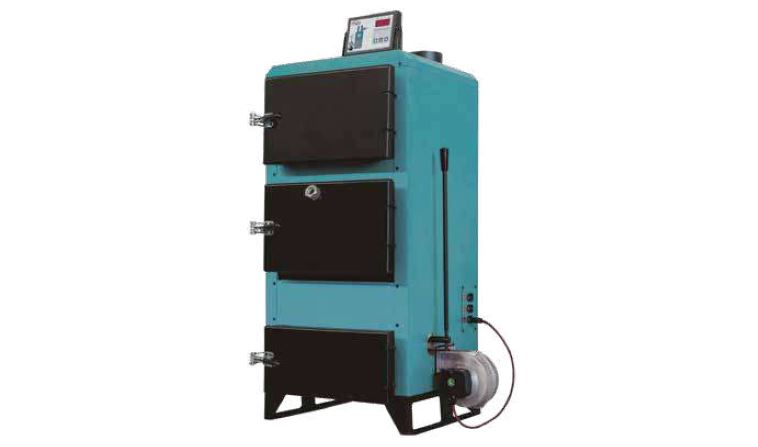

Solid Fuel Fired Four-Pass Full Baffle Manual Loaded Room Heater

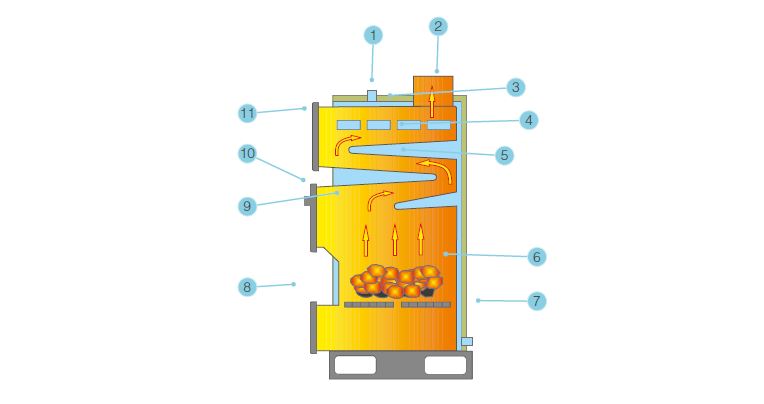

FKB Series; Solid fueled manual loaded room centrally heated are manufactured as four-pass and full baffle systems. 3 different types of production are made within the range of 60,000 kcal/h (35 kW) to 30,000 kcal/h (70 kW). Since the whole fuel is contacted with fan controlled combustion system, the rate of unburned coal is low. Complete burning is performed with secondary air ducts located within combustion chamber. Thanks to its four-pass baffle (plated) design, it is designed in a way to burn fuels such as , low-calorie domestic coal and wood in a highly efficient and environmentalist way. It allows maximum heat transfer and fuel saving by distributing obtained heat equally.
Features
- High combustion efficiency up to 80%.
- Wide combustion chamber suitable for coal, lignite coal and wood burning.
- Fuel loading, ash disposal and cleaning easiness with three different cover design.
- Ease the reservoir of loading and tobacco thanks to wide fuel feeding neck and chamber.
- Adjustable caps with custom-designed cover handle and hinge structure.
- Combustion safety and fume resistance with locking lid and combustion safety.
- Low gas emission values with eco-friendly design.
- Protection against all kinds of outer effect with steel construction in prismatic structure.
- Coating with electrostatic power paint on galvanized sheet.
- Standard operating pressure 2 bars.
- Ease of cleaning thanks to plated design (baffle) between passes.
- Ease of shaking and ash discharge with mobile casting grating.
- Use of 3.1 certificated boiler tube compatible with 10217-2 norm.
- Frequency-controlled, energy-efficient circulation pumps.
- Common service network.
- State-of-the-art manufacturing techniques.
- Compliance with national and International norms.
