BOILER SYSTEMS

Kazan Sistemleri Parçaları

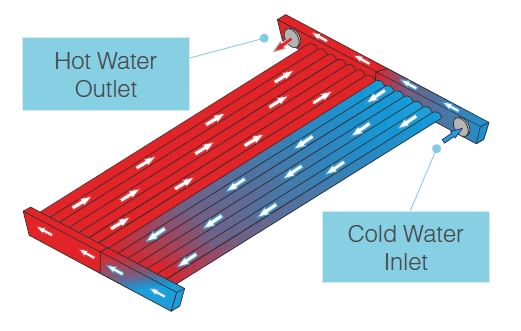

WATER COOLED GRATING

In manual-loaded central system hot water boilers produced with MIT brand, Ekin Endüstriyel patented “Water Cooled Grating System” is used. In standard boilers in which cast gratings are used, cracking or melting problems may also occur due to excessive heat. These problems constitute change and refurbishment costs for the end user. Thanks to our Water Cooled Grating design, this extra cost is avoided and also boiler efficiency increases due to extra heat transfer surface, fuel cost is lowered.

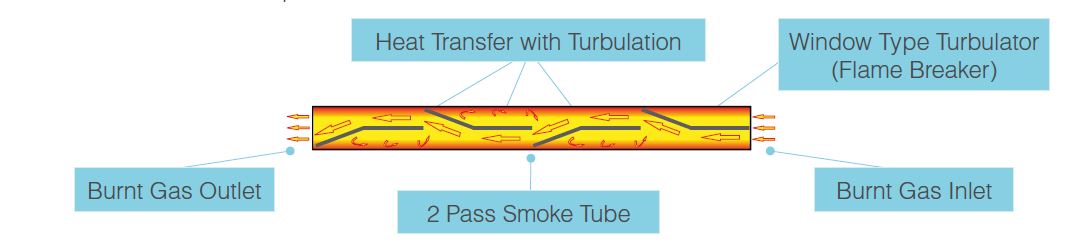

WINDOW TYPE FLAME BREAKER (TURBULATOR)

Thanks to window-type turbulators (flame breaker) found in second pass pipes, combustion efficiency increases and fuel consumption decreases.

PENCERE TİPİ ALEV KIRICI

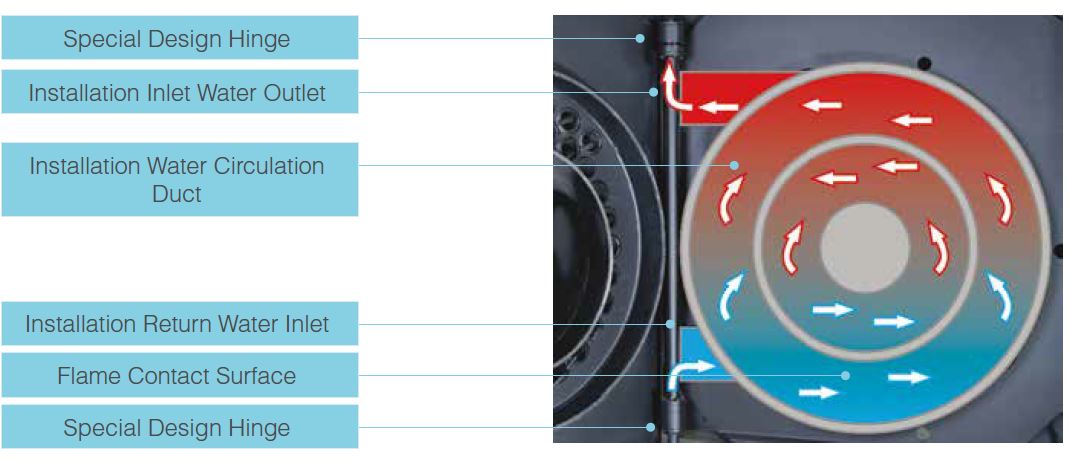

WATER COOLED COVER

In all solid, liquid and gas-fueled central system hot water boilers produced under the brand name MIT, water cooled cover system is used. Thanks to Ekin Endüstriyel patented “Water Cooled Cover System, this device allows longer life than covers with refractory material, and fault and service costs are eliminated before occurring. Besides, since heat losses occurring on front cover are transferred to installation water as energy within the system, fuel consumption costs are reduced.

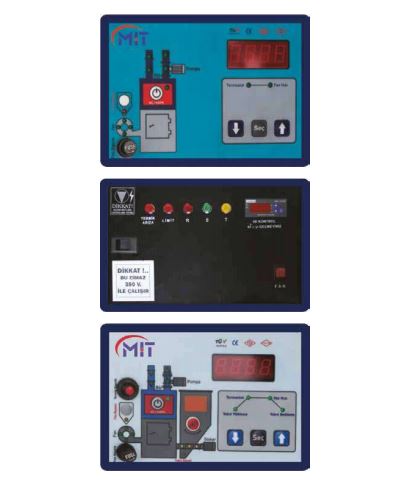

STANDARD CONTROL PANEL

Digital control panel provided on all solid fueled boilers as a standard to our customers;

  • Adjusting installation water to desired temperature.
  • Heat tracking with digital display.
  • Adjusting installation water temperature according to exterior ambient temperature.
  • Protection against excessive heatings thanks to safety thermostat.
  • Preventing unnecessary electricity consumption by controlling circulation pump as per installation water temperature are all provided.
